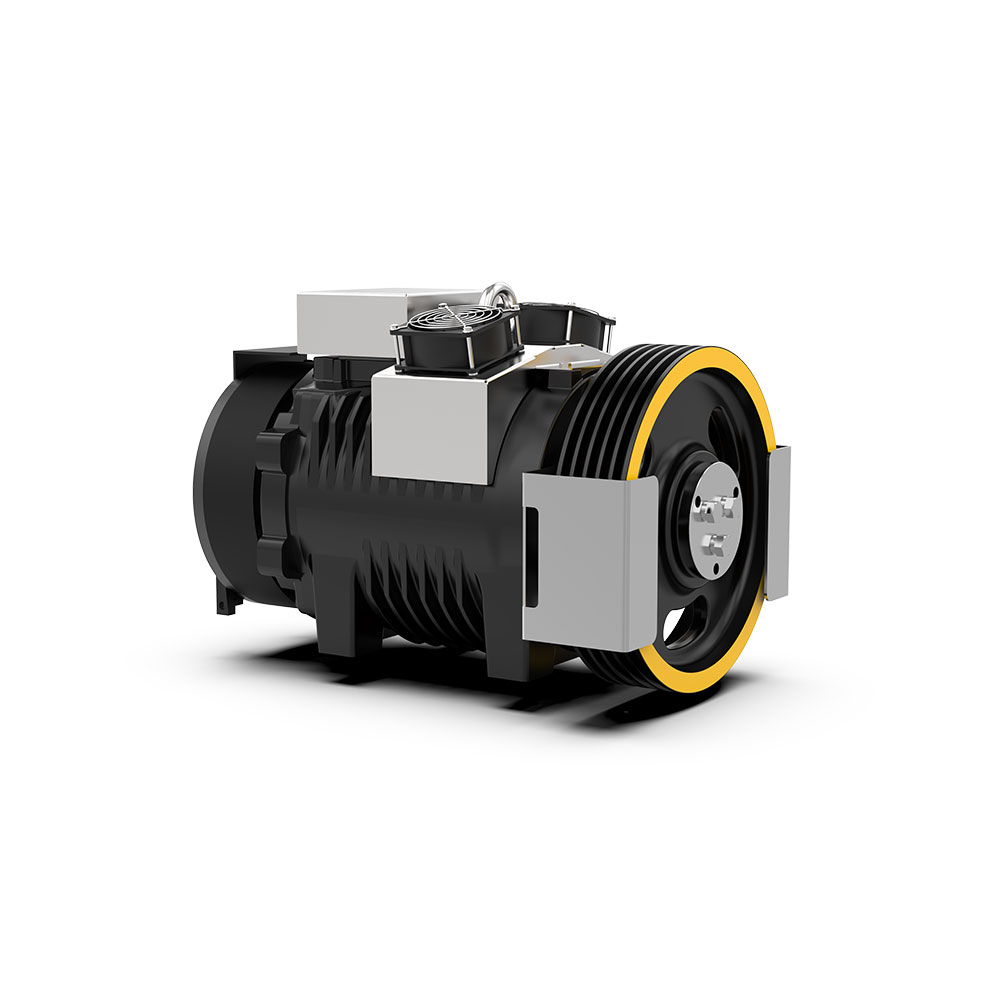

Gearless SGI10-N
Capacity
Range
680 kg
Sheav
Diameter (mm)
320 kg
Speed
Range
1.0 m/s ~1.75 m/s
Torque
Rated
365 Nm (S5 40%)
Power Range
(min - max)
4,59 – 8,03 kW
Static Load
Maximum
19.6 kN – 2000 kg
Weight
Maximum
155 kg
Nominal Motor
Voltage
360 V
- Rescue Device- Remote Release Device
- Encoder Cable
