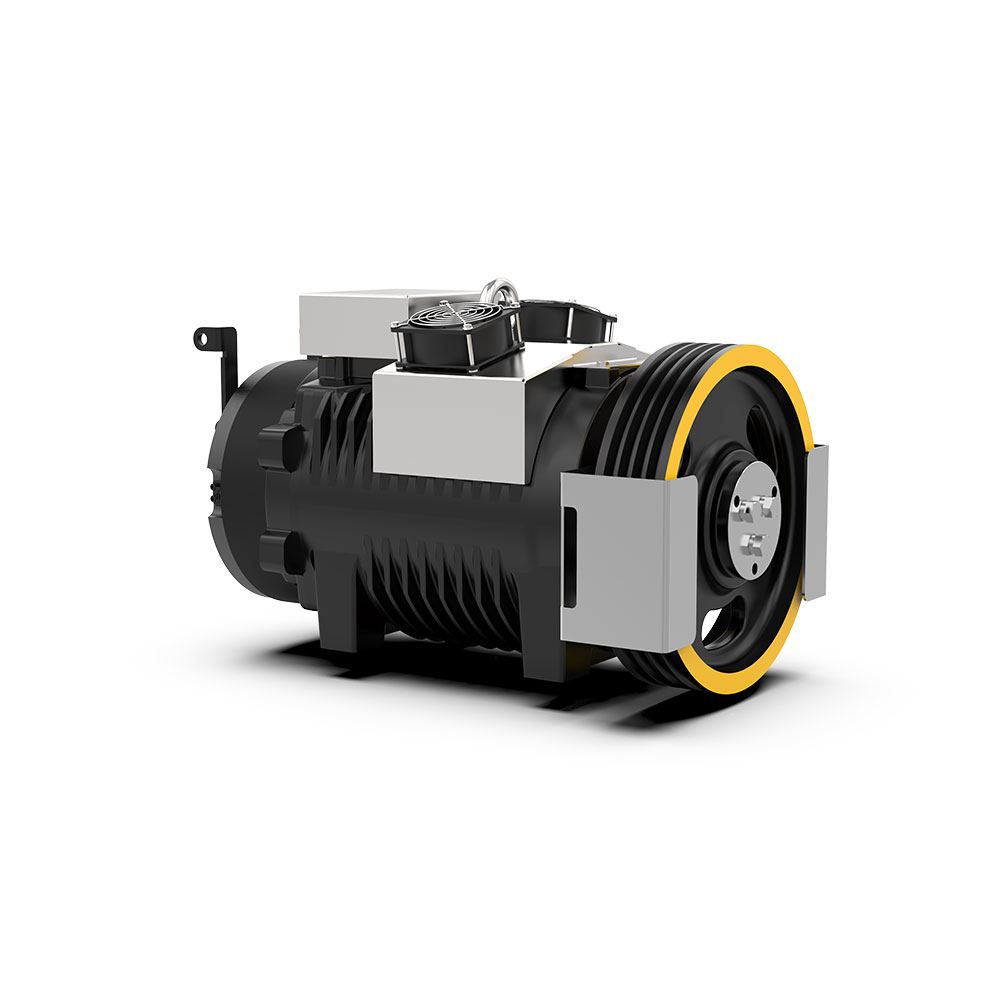

Gearless SGI13-N
Capacity
Range
884 kg
Sheav
Diameter (mm)
320
Speed
Range
1.0 m/s ~ 1.75 m/s
Torque
Rated
454 Nm(S5 40%)
Power Range
(min - max)
5,71 – 9,94 kW
Static Load
Maximum
24,5 kN – 2500 kg
Weight
Maximum
205kg
Nominal Motor
Voltage
360 V
- Rescue Device- Remote Release Device
- Encoder Cable
